Forged For The Best
Extensive testing with our top tour professionals gleaned tremendous insights in the development of Blueprint S.
No detail was overlooked, offering unique points of differentiation in the forged-iron category while delivering the shot-making
precision and score-lowering performance demanded by the best players in the world.
No detail was overlooked, offering unique points of differentiation in the forged-iron category while delivering the shot-making
precision and score-lowering performance demanded by the best players in the world.

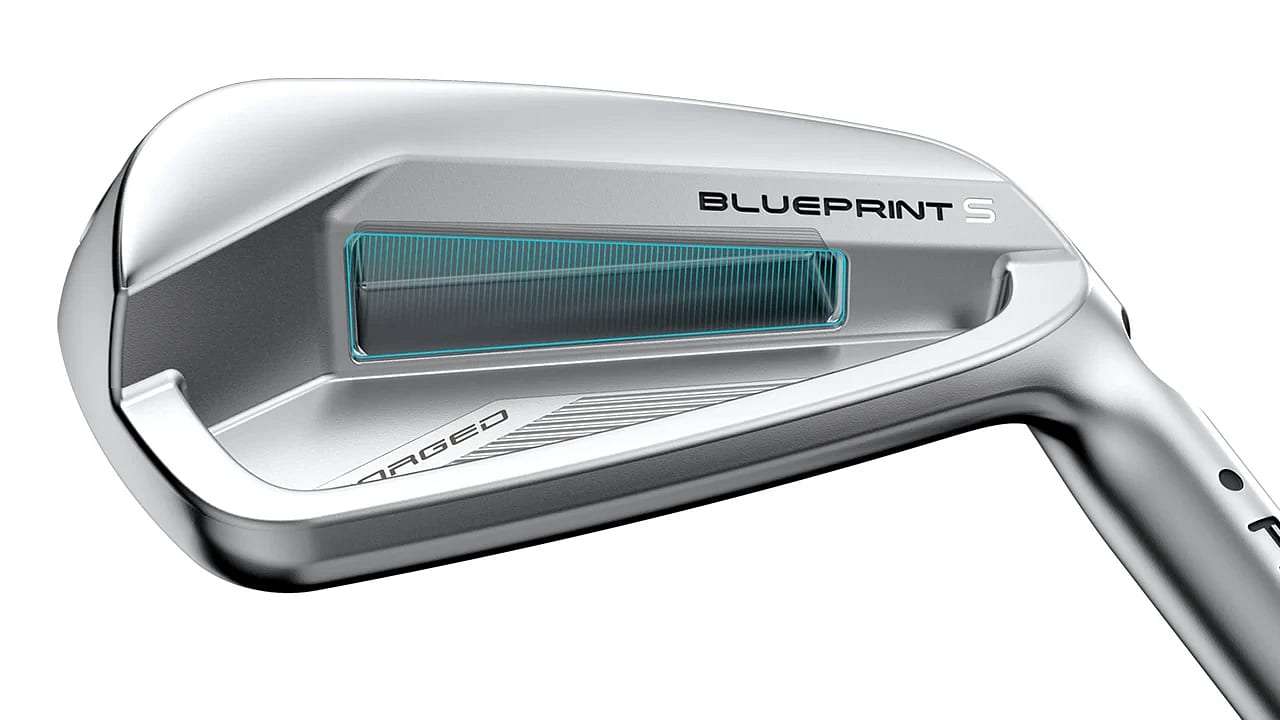

Precision-Pocket Forging
Using a patented technique, a pocket is forged into the cavity of the 3, 4 and 5 irons, saving 10g of weight,
which is re-allocated to increase the MOI for added forgiveness. An elastomer insert ensures a solid feel and sound.
which is re-allocated to increase the MOI for added forgiveness. An elastomer insert ensures a solid feel and sound.

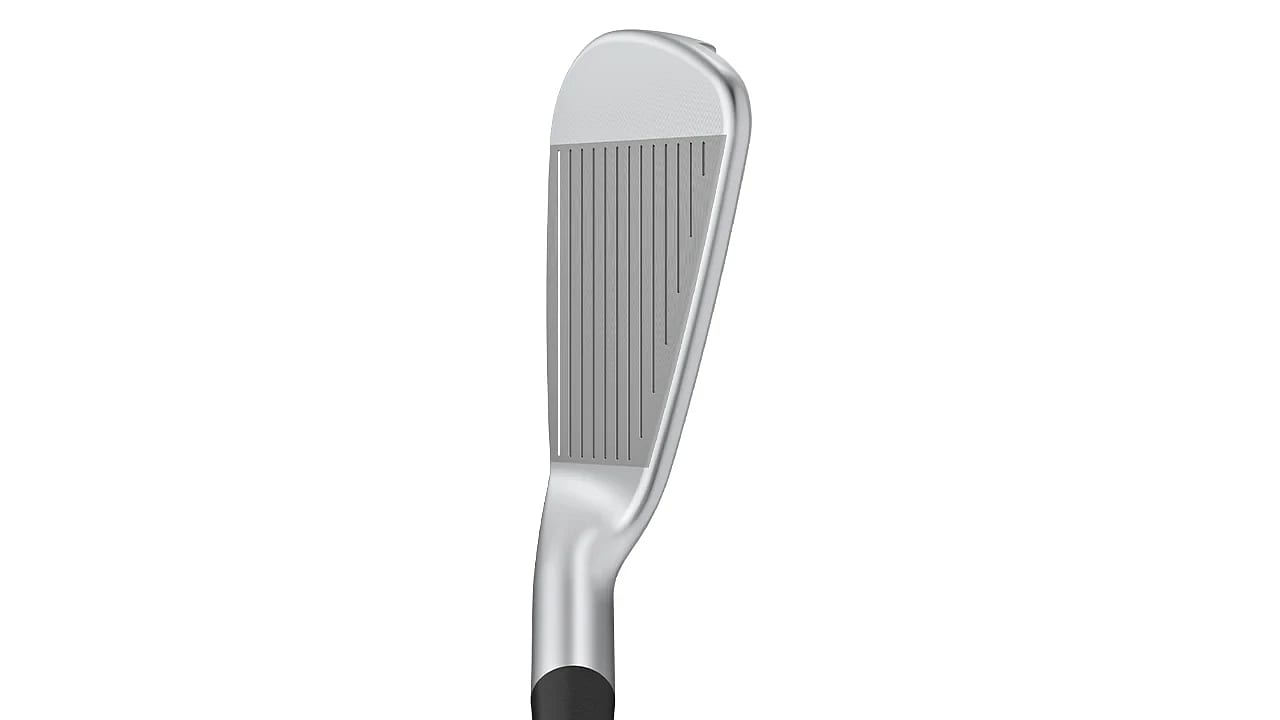

Pro-Preferred Look
The compact shape fits the discerning eye with a thin top line, minimal offset and shorter blade length, creating an appealing look at address.
This design was achieved as a result of working with top PING Tour pros who wanted a blade-style iron shaped to deliver workability and control.
This design was achieved as a result of working with top PING Tour pros who wanted a blade-style iron shaped to deliver workability and control.

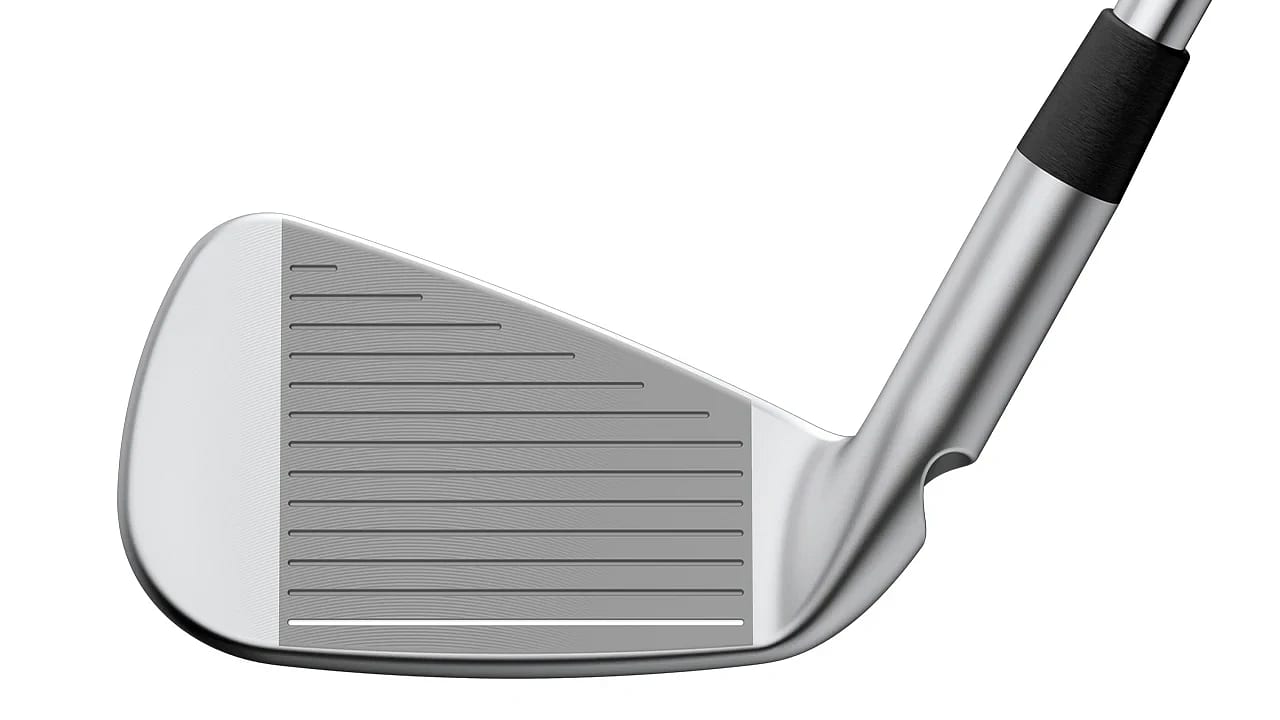

Machined Face & Grooves
The grooves are precision-milled for optimal launch and spin. In tour player testing, Blueprint S produced more
ball speed than previous generations while increasing max height for green-holding performance.
ball speed than previous generations while increasing max height for green-holding performance.
Narrower Sole
High-density toe screw and shaft tip weights allow for swingweight fine-tuning. The narrow sole provides
consistent turf interaction from all conditions. Lofts are identical to Blueprint T and i230 for blending sets.
consistent turf interaction from all conditions. Lofts are identical to Blueprint T and i230 for blending sets.
Early Validation
The 6-iron through PW are sized and shaped for workability and control, attributes appreciated by PING pros,
who have quickly embraced the new design. Sahith Theegala was the first to win with S, crediting their
straighter ball flight and consistent distance. Louis Oosthuizen notched
consecutive victories playing a blended set of S and T.
who have quickly embraced the new design. Sahith Theegala was the first to win with S, crediting their
straighter ball flight and consistent distance. Louis Oosthuizen notched
consecutive victories playing a blended set of S and T.
CLUB | LENGTH | LOFT | POWER SPEC LOFT | RETRO SPEC LOFT | LIE ANGLE | OFFSET | BOUNCE | SWINGWEIGHT |
---|---|---|---|---|---|---|---|---|
3-iron | 39″ | 19.0° | 19.0° | 21.0° | 59.0° | 0.17″ | 4.0° | D2 |
4-iron | 38 1/2″ | 22.5° | 22.0° | 24.5° | 59.8° | 0.15″ | 5.0° | D2 |
5-iron | 38″ | 26.0° | 25.0° | 28.0° | 60.5° | 0.12″ | 6.0° | D2 |
6-iron | 37 1/2″ | 29.5° | 28.0° | 31.5° | 61.3° | 0.10″ | 7.0° | D2 |
7-iron | 37″ | 33.0° | 31.5° | 35.0° | 62.0° | 0.08″ | 8.0° | D2 |
8-iron | 36 1/2″ | 37.0° | 35.5° | 39.0° | 62.8° | 0.06″ | 9.0° | D2 |
9-iron | 36″ | 41.0° | 40.0° | 43.0° | 63.5° | 0.04″ | 10.5° | D2 |
PW | 35 1/2″ | 45.0° | 44.5° | 47.0° | 64.1° | 0.02″ | 11.5° | D3 |
SHAFT | FLEX | WEIGHT | LAUNCH ANGLE |
---|---|---|---|
True Temper Dynamic Gold 120
|
S300 | 112.0g | Mid |
X100 | 114.0g | Mid | |
PING AWT 2.0
|
Regular | 98.0g | Mid High |
Stiff | 104.0g | Mid | |
X-Stiff | 119.0g | Low Mid | |
True Temper Dynamic Gold
|
S300 | 124.0g | Low Mid |
X100 | 124.0g | Low | |
True Temper Dynamic Gold 105
|
R300 | 95.0g | Mid High |
S300 | 97.0g | Mid High | |
FST KBS Tour
|
Regular | 104.0g | Mid |
Stiff | 114.0g | Mid | |
X-Stiff | 124.0g | Low Mid | |
Nippon N.S. Pro Modus 3 105
|
Regular | 103.0g | Mid High |
Stiff | 106.0g | Mid High | |
X-Stiff | 112.0g | Mid High | |
PING ALTA CB Black
|
Soft Regular | 65.0g | High |
Regular | 72.0g | Mid High | |
Stiff | 82.0g | Mid | |
True Temper Elevate MPH 95
|
Regular | 93.0g | High |
Stiff | 94.0g | High | |
UST Recoil Dart
|
65A (F2) | 61.0g | Mid |
75R (F3) | 72.0g | Mid | |
75S (F4) | 78.0g | Mid | |
Project X IO
|
5.5 | 97.0g | Mid High |
6.0 | 102.0g | Mid | |
6.5 | 107.0g | Mid Low | |
Project X LS
|
6.0 | 111.0g | Low |
6.5 | 116.0g | Low |
